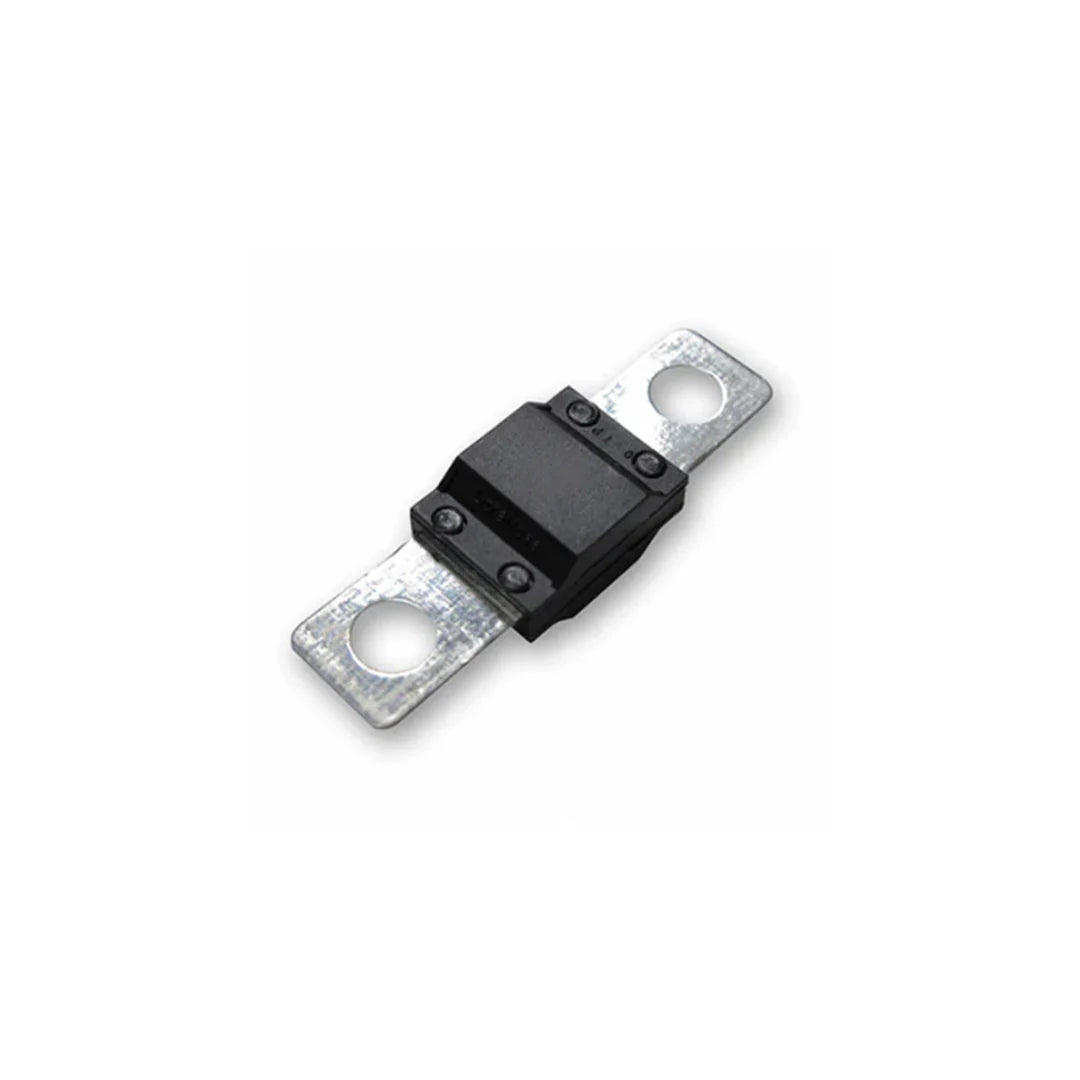

Victron MEGA fuses 80V Description:
The Victron MEGA-fuse provides robust and high-current protection for DC systems, ensuring the safety and reliability of your electrical components. With multiple amperage options and compatibility for 32V, 58V and 80V systems, these fuses are ideal for solar, RV, and off-grid power applications.
Key Features:
- Wide Range of Options: Available in amperage ratings from 60A to 500A for both 32V and 58V systems.
- High-Current Protection: Designed to safeguard batteries, inverters, and DC systems from overloads and short circuits.
- Reliable Performance: Built with Victron Energy's quality assurance for durability and long-lasting use.
- Flexible Applications: Perfect for off-grid solar systems, RVs, marine setups, and battery-based power installations.
| MEGA Fuse | Approx. Voltage Drop | Cold Resistance |
|---|---|---|
| MEGA fuse 40A/80V | 135 mV | 1.459 mΩ |
| MEGA fuse 60A/80V | 135 mV | 1.017 mΩ |
| MEGA fuse 80A/80V | 110 mV | 0.716 mΩ |
| MEGA fuse 100A/80V | 110 mV | 0.868 mΩ |
| MEGA fuse 125A/80V | 110 mV | 0.653 mΩ |
| MEGA fuse 150A/80V | 110 mV | 0.332 mΩ |
| MEGA fuse 175A/80V | 110 mV | 0.282 mΩ |
| MEGA fuse 200A/80V | 110 mV | 0.253 mΩ |
| MEGA fuse 225A/80V | 110 mV | 0.235 mΩ |
| MEGA fuse 250A/80V | 110 mV | 0.208 mΩ |
| MEGA fuse 300A/80V | 80 mV | 0.171 mΩ |
| MEGA fuse 400A/80V | 80 mV | 0.128 mΩ |
| MEGA fuse 500A/80V | 80 mV | 0.106 mΩ |
Victron MEGA fuses 80V
