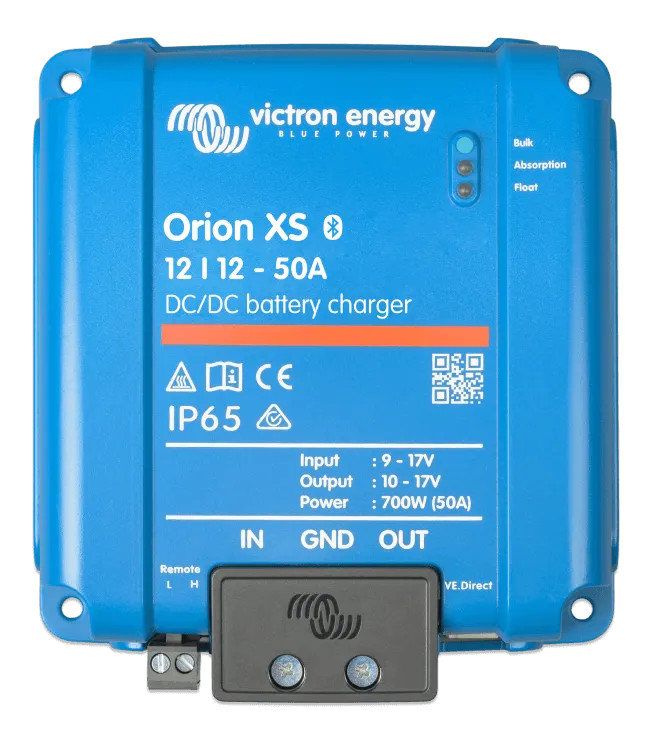

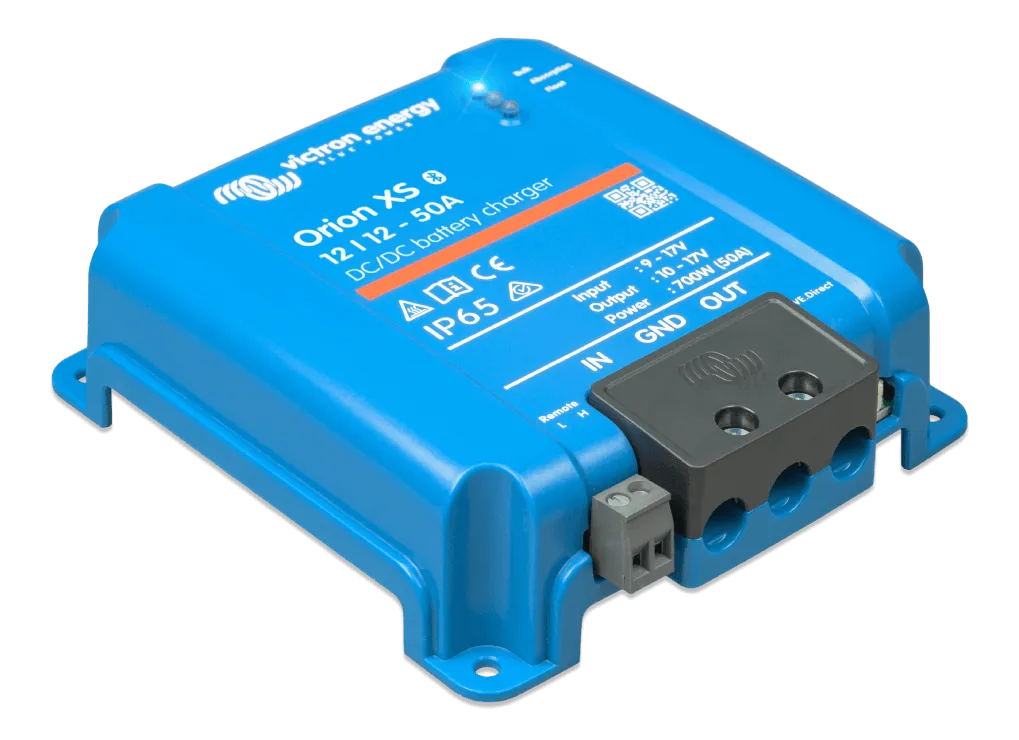

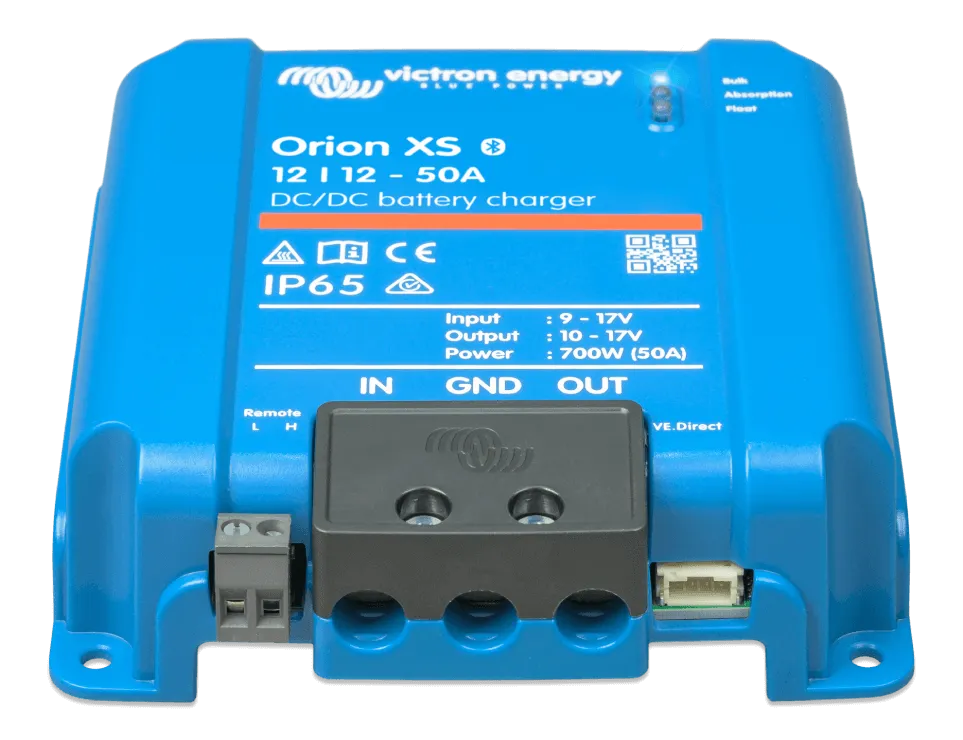

Victron Orion XS DC-DC Charger

Sale
Regular price $560

Quantity

Secure payments

100% Guarantee

Client satisfaction

The Orion XS, engineered from the ground up, redefines DC-DC battery-to-battery charging. Ideal for dual battery systems charged by an intelligent alternator.

Have a question?

Talk with a technical expert.

✆ Call Us

Victron Orion XS DC-DC Charger Description:

The Orion XS, engineered from the ground up, redefines DC-DC battery-to-battery charging. Ideal for dual battery systems charged by an intelligent alternator.

Configurable Charging
Precisely adjust input and output currents using simple controls. This safeguards alternators from overloading and ensures the service battery is charged correctly, particularly with intelligent alternators.

Efficiency x 5
The Orion XS operates at an impressive 98,5% efficiency. That's 5 times more efficient than its predecessors. Its ultra efficient components and aluminium circuit board technology also mean less heat.

Ultimate control

Thanks to its VE.Direct port, full integration in your Victron system can be achieved. See all performance data from wherever you are, stay on top with simple controls and let our algorithms do the rest.

Parameter	Orion XS DC-DC Battery Charger 12/12-50A
Input voltage range	9-17 V
Output voltage adjust range	10-17 V
Output voltage tolerance	+/- 0.25% (max)
Output voltage noise	10 mV rms
Input and output current setting range	1 – 50 A
Maximum constant short-circuit current	50 A
Continuous output power up to 40 °C	700 W
Maximum efficiency	98.5 %
No-load current consumption	< 100 mA
Standby current consumption	< 1.5 mA
Can be used as power supply	Yes, output voltage can be set with VictronConnect App
Communication
VictronConnect App / Bluetooth Smart	Yes
VE.Smart Networking	Yes
VE.Direct	Yes (including DVCC)
Other
Operating temperature range	-20 to +60 °C (derating 1.5 % per °C above 40 °C)
Humidity	95 %, non-condensing
Maximum altitude	2000 m
Pollution degree	PD2
Overvoltage category	OVC 1
DC connection	Screw terminals
Maximum cable cross-section	4AWG (21.2mm²)
Weight	0.330 kg (0.73 lb)
Dimensions (hxwxd)	137.3 x 123.1 x 40 mm (5.4 x 4.85 x 1.6 inch)
Protection category	IP65

Parallel to increase output current

An unlimited number of Orion XS devices can be connected in parallel, for easy output current scaling to meet system requirements.

Smart alternator compatibility

With its built-in engine running detection, the Orion XS guarantees the charger only draws power when the engine is running. It also helps retrieving a proper charge current from intelligent alternators as found in Euro 5 & Euro 6 engines.

Adaptive charge algorithm

The Orion XS features customizable and preset charging algorithms for lithium and lead-acid batteries, ensuring optimal recharging, for both shallow and deep discharges.

Complete electronic protection

The Orion XS comes equiped with comprehensive electronic protection against overload, short circuit and excessive temperatures. It will automatically reduce the output power when maximum product temperature is reached.

Low temperature shutdown & undervoltage protection

To prevent damage of lithium batteries, the charger will turn off automatically at low temperatures and when the input voltage drops below a user-configurable lockout value, protecting the starter battery from deep discharge.
