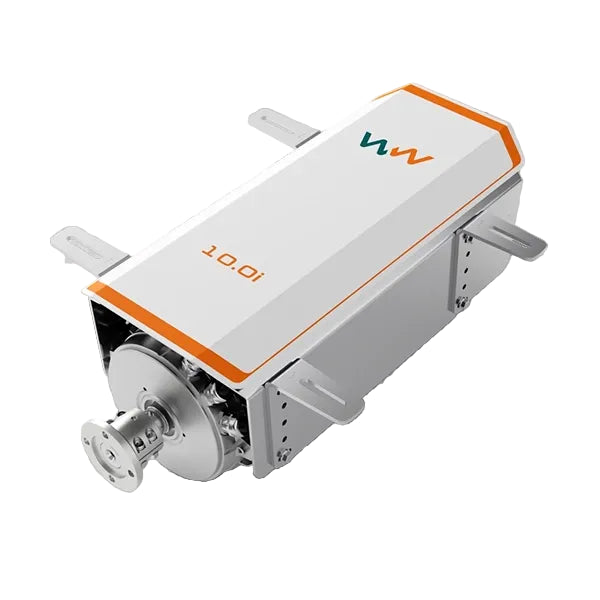

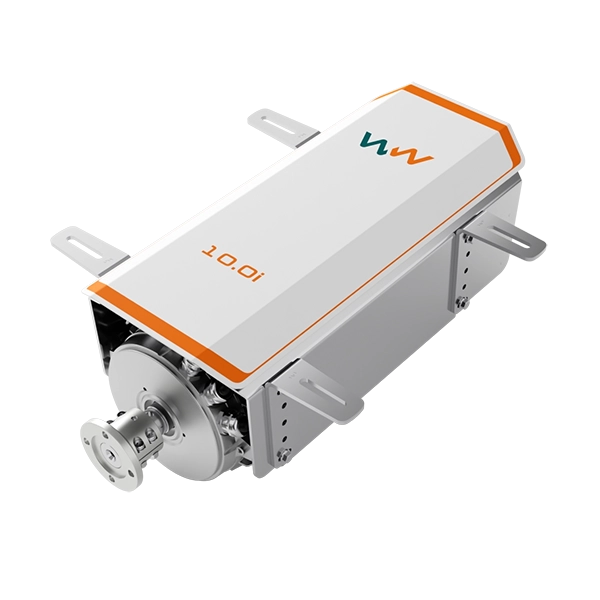

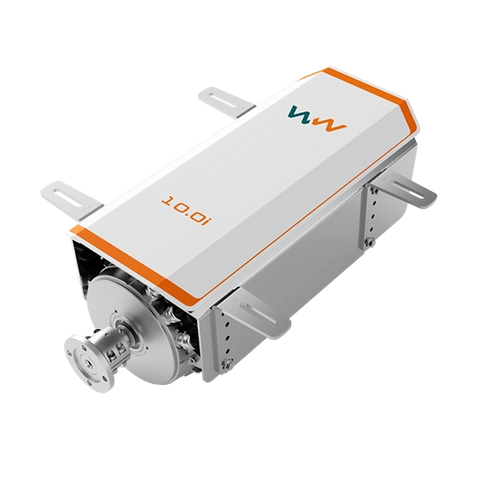

WaterWorld Electric Inboard Motor 10kW
5.0/5.0
3 reviews
Couldn't load pickup availability
Have a question?
Talk with a technical expert.
Electric Inboard Motor WaterWorld 10kW Description:

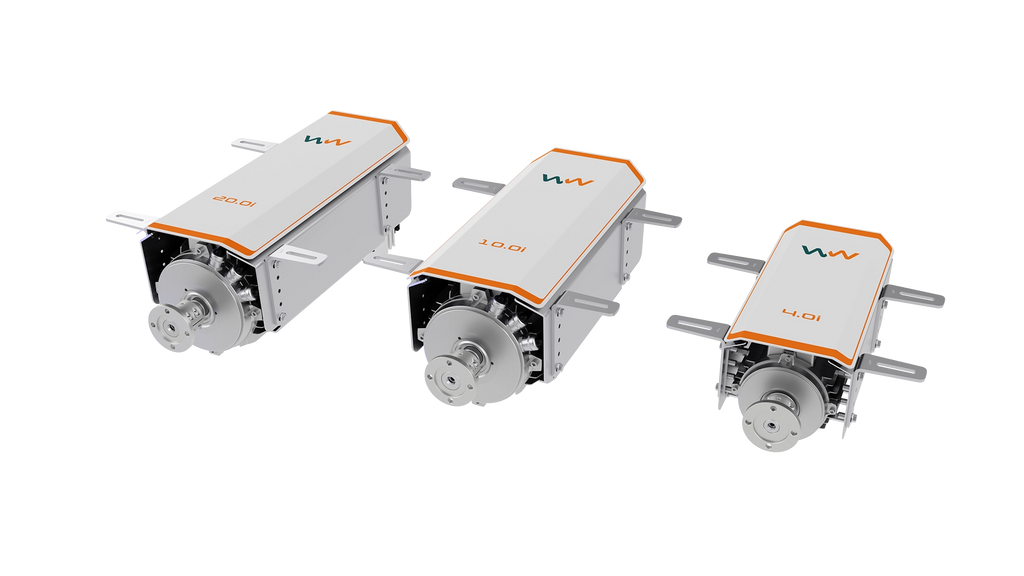

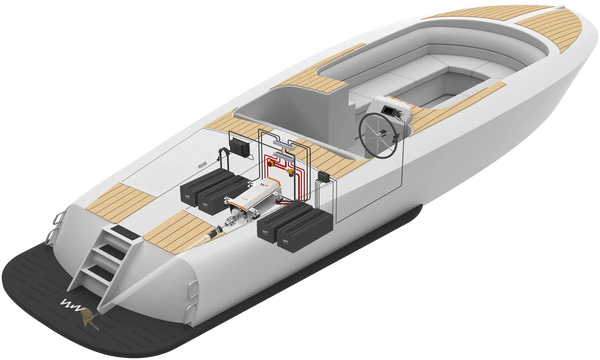

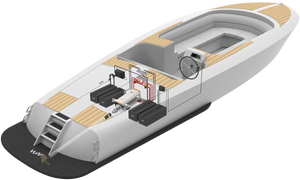

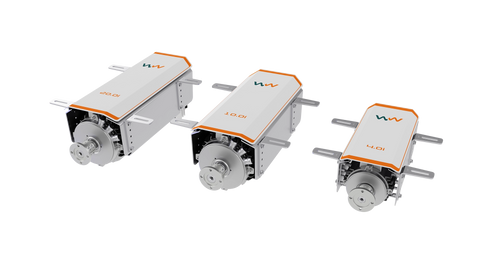

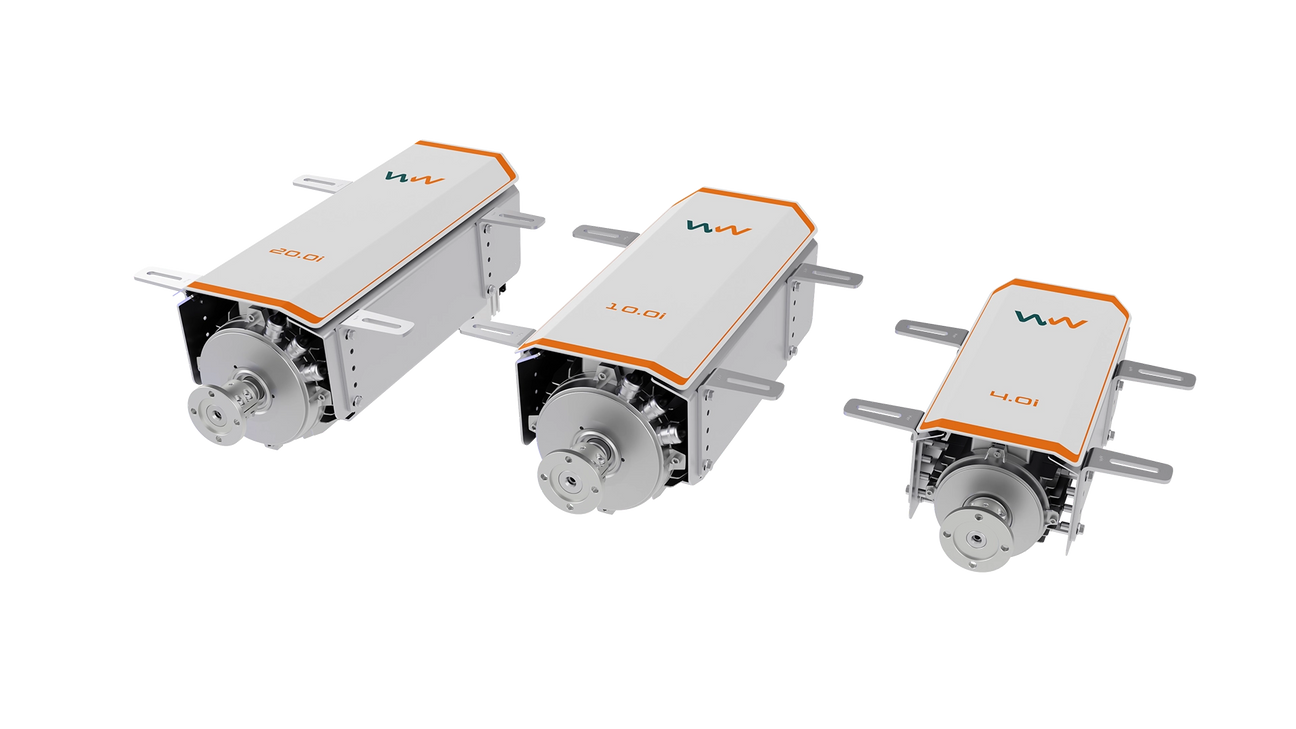

A smart and complete inboard electric drive system at 48V available in a range of 4,4 kW – 20 kW. Top quality inboard systems specifically designed to optimize the boating experience in any way you like. All in one package. Guaranteed for a fun day on the water, no compromises.
Say “Yes” to the perfect alternative

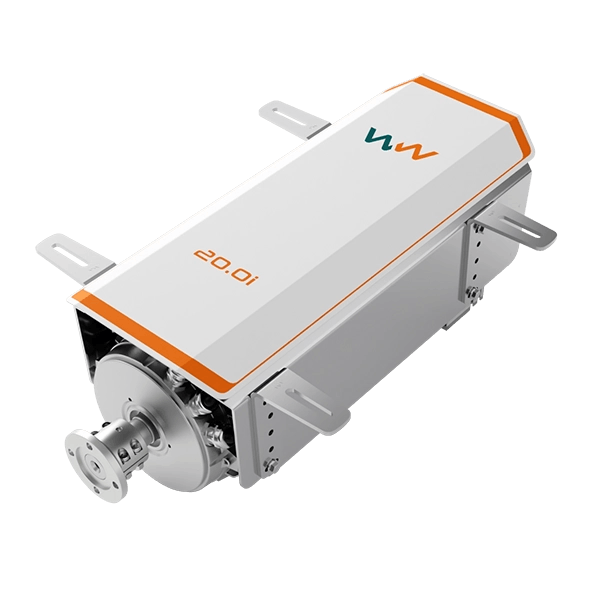

WaterWorld 20kW Electric Drive Specifications
| Category | Details |
|---|---|
| Power | 10 kW |
| Nominal Voltage | 48 V |
| Nominal Speed | 1450 rpm |
| Max Speed | 1500 rpm |
| Cooling | Air cooled |
| Weight | 76 kg |
| Dimensions | 681x295x103 |
| Standard Warranty | 2 years |
| Extended Warranty | 3 years (when paired with WaterWorld lithium batteries) |
| Features | - Includes throttle and color display - Silent drive - Maintenance-free |
WaterWorld systems require minimal maintenance.

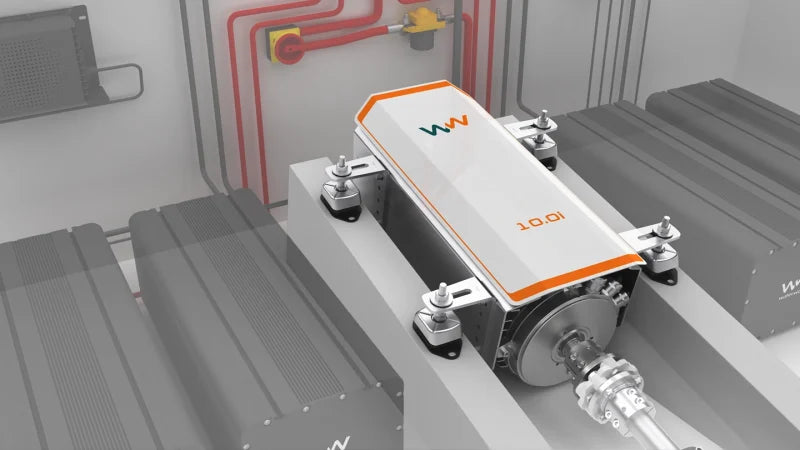

This week we have been out with one of our customers (Ohlson 8:8 sailboat) to do seatrials and prove our calculations on the electric inboard system 10.i powered by two 48-6800 batteries.
Our customer demanded a minimum range of 30Nm @4,5kn.
LWL: 7,3m
boat weigth: 3600kg
calculated range: 30,6Nm/4,5kn/2,0kW
against wind 3m/s: 26,6Nm/4,5kn/2,3kW
by the wind 3m/s: 40,8Nm/4,5kn/1,5kW
combined: 32,2Nm/4,5kn/1,9kW
*The boat was laying in over winter for at least five month without movement, location near Malmö/Sweden. it has not been high pressure cleaned or fresh painted before trials.
Our test results are not just matching but clearly exceeding the theoretical calculations provided by our tools. We could not ask for more and are happy that we can rely on high quality electric propulsion systems by WaterWorld Electronics to supply a sustainable maritime future!
We converted an Ohlson 8:8 sailboat to electric using a WaterWorld 10kW inboard motor, and the results exceeded expectations. The system was easy to install, exceptionally quiet, and provided excellent performance. Sea trials confirmed we even surpassed the estimated 30 nm range. Maneuverability improved significantly, and maintenance is now minimal. WaterWorld’s high-quality, plug-and-play system made the conversion smooth and hassle-free. Highly recommended!
